Vision Intern — Indoor 4K Time Lapse Camera
Vision Intern — Indoor 4K Time Lapse Camera

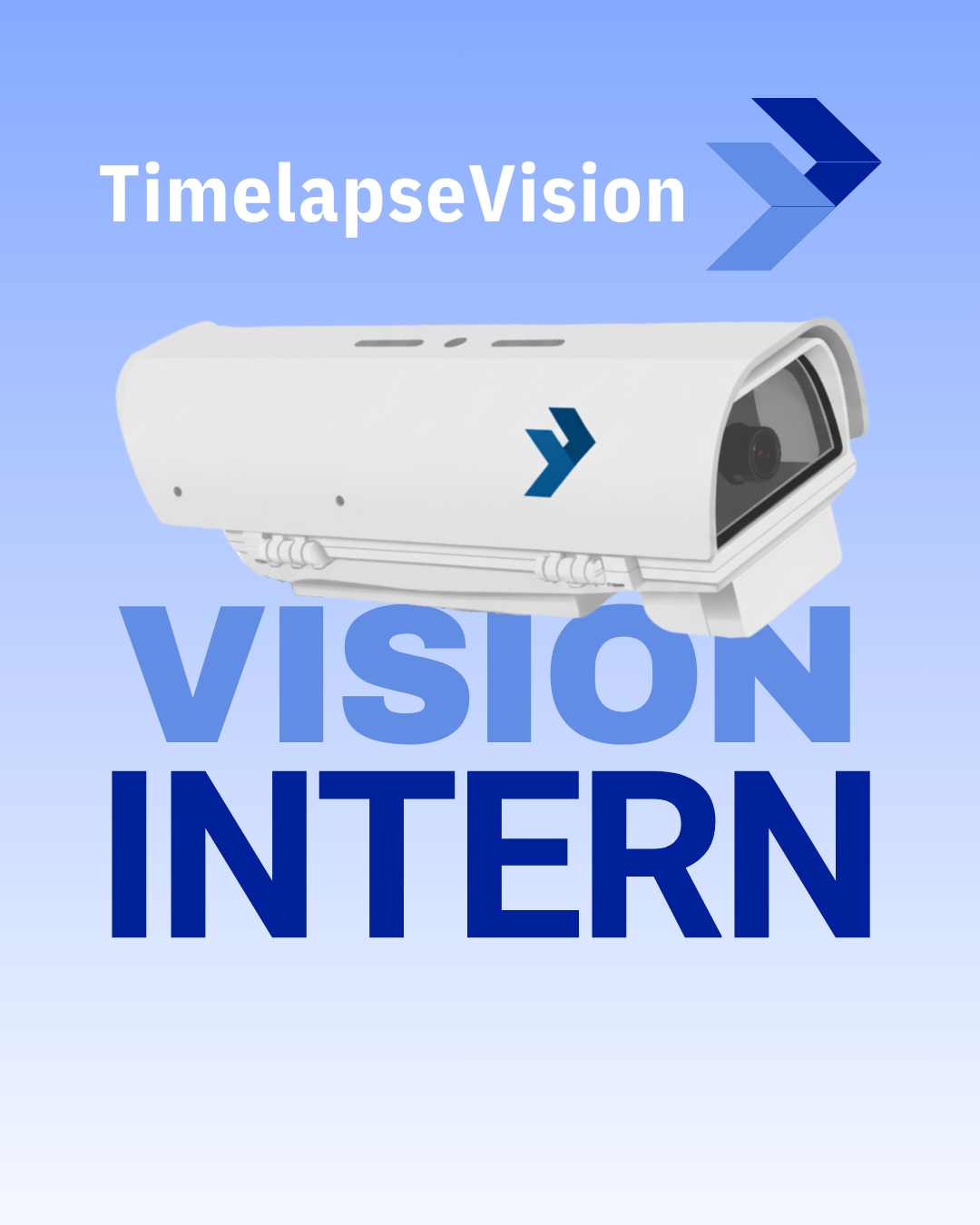

Vision Intern is the indoor time lapse camera in the TimelapseVision range, and its entry model: it documents works and progress on indoor projects — interior renovations, exhibition and retail fit-outs, office builds, production halls — with 4K images from 8 megapixels and a fixed 90° lens, the same photographic base as the Fixed 8MPX.
The camera works indoors; connectivity is handled by a 4G LTE router box connected by cable (10 metres included), mounted wherever the signal is best, inside or outside the building. The box also powers the camera: one 220 V socket and the system is running, plug & play, no technician needed.
It shoots at programmable intervals from 5 to 20 minutes and sends images to the same web platform as the rest of the range, with the Base, Monitoring and All Inclusive plans. IP67 housing, operation from −30 °C to +60 °C: built for the dust and real conditions of a construction site, indoors included. The European data SIM available in the shop.
Specifications
- Fixed 90° lens — 8 megapixels, 4K images
- IR illuminator up to 40 m for shooting in the dark
- Indoor device, IP67 housing
- External 4G LTE router box (IP56), 10 m cable included
- 220 V power through the box, industrial plug included
- 5–20 minute shooting interval, plug & play
Vision Intern in detail: indoor 4K time lapse camera
Vision Intern brings the same time lapse documentation as the outdoor range to indoor projects: interior renovations, exhibition and retail fit-outs, office builds, work inside industrial halls and production spaces. The photographic base is that of the range's standard model: a 1/1.8″ CMOS sensor, 8 megapixels with 4K images, a fixed lens with a 90° horizontal field of view, F1.0 aperture and an infrared illuminator reaching 40 metres — because an indoor site, at night or in rooms without windows, is often darker than an outdoor one. It is also the entry model of the TimelapseVision line-up.
The challenge indoors is connectivity: deep inside a building, the signal often does not reach. Vision Intern splits the two jobs — the camera records indoors, while a 4G LTE router box mounts wherever the signal is best, inside or outside (IP56 rated). The two connect by cable: 10 metres included, extendable up to 100. The box also powers the camera, so a single socket is enough: 220 V with an industrial plug included, or 12 V on request. As an alternative to 4G, on request the box can use the building's Wi-Fi or wired network. The European data SIM is available in the shop.
The rest is the base shared across the range: patented industrial device, programmable shots from 5 to 20 minutes, plug & play installation and images on the web platform with the Base, Monitoring and All Inclusive plans — automatic time lapses, alerts and reports included. The metal IP67 housing, −30 °C to +60 °C operation with humidity up to 95%, and the microSD slot up to 512 GB easily handle the dust and long months of an indoor site.
To document the works from outside, the outdoor range starts with Vision Fixed 8MPX; if the framing needs adjusting remotely, there is the remote zoom range.
Vision Intern technical specifications
| Feature | Specification |
|---|---|
| Sensor | 1/1.8″ progressive scan CMOS |
| Resolution | 8 megapixels — 4K images (3840 × 2160) |
| Lens | Fixed, 90° horizontal field of view |
| Aperture | F1.0 |
| Min. illumination | 0.0008 lux in colour; 0 lux with IR on |
| Night vision | Built-in IR illuminator, up to 40 m |
| Dynamic range | 120 dB WDR |
| Local storage | microSD slot, up to 512 GB |
| Use | Indoor environments |
| Camera housing | Metal, IP67 rated |
| Operating temperature | −30 °C to +60 °C, humidity up to 95% |
| Transmission | 4G LTE router box, mounts indoors or outdoors (IP56) |
| Camera–box connection | Cable, 10 m included (extendable up to 100 m) |
| Alternative connectivity | Building Wi-Fi or wired network, on request |

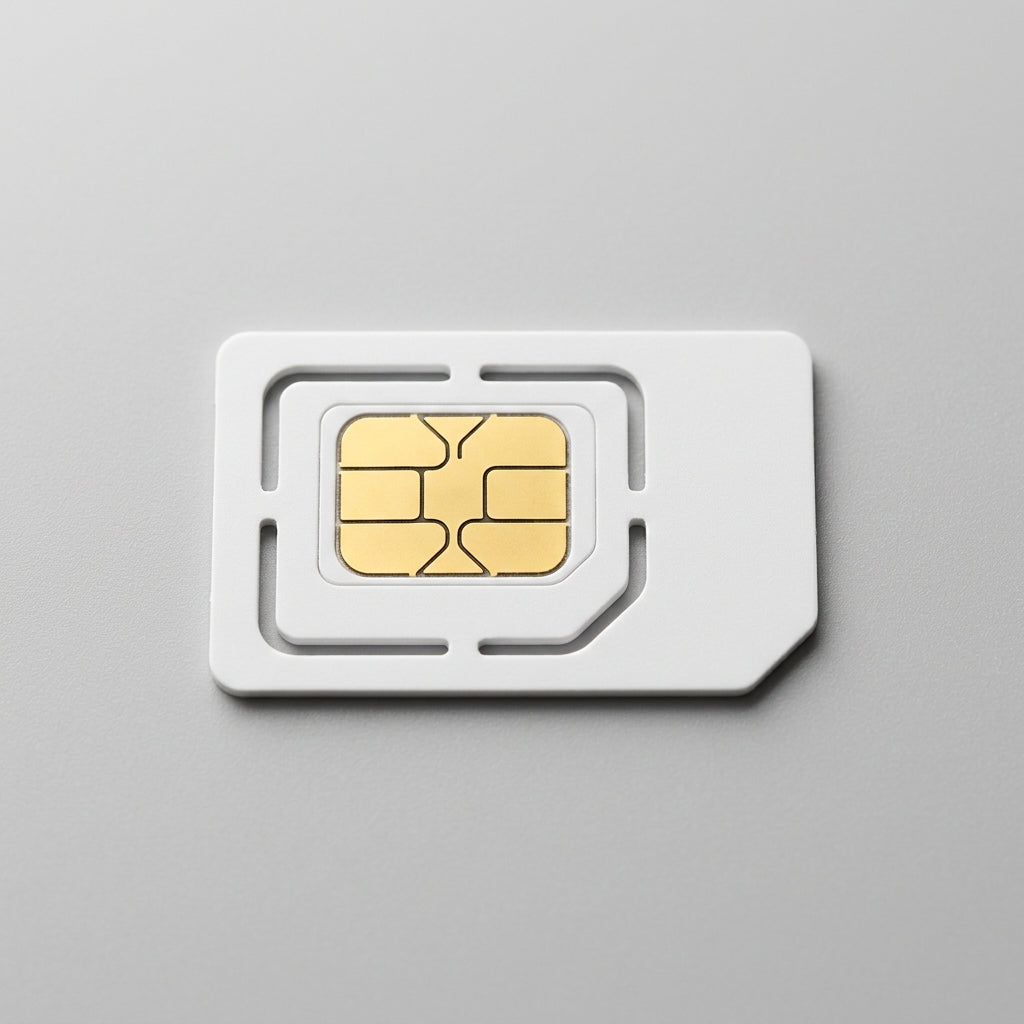

| Data SIM | 100GB data SIM available in the shop (€25/month) |

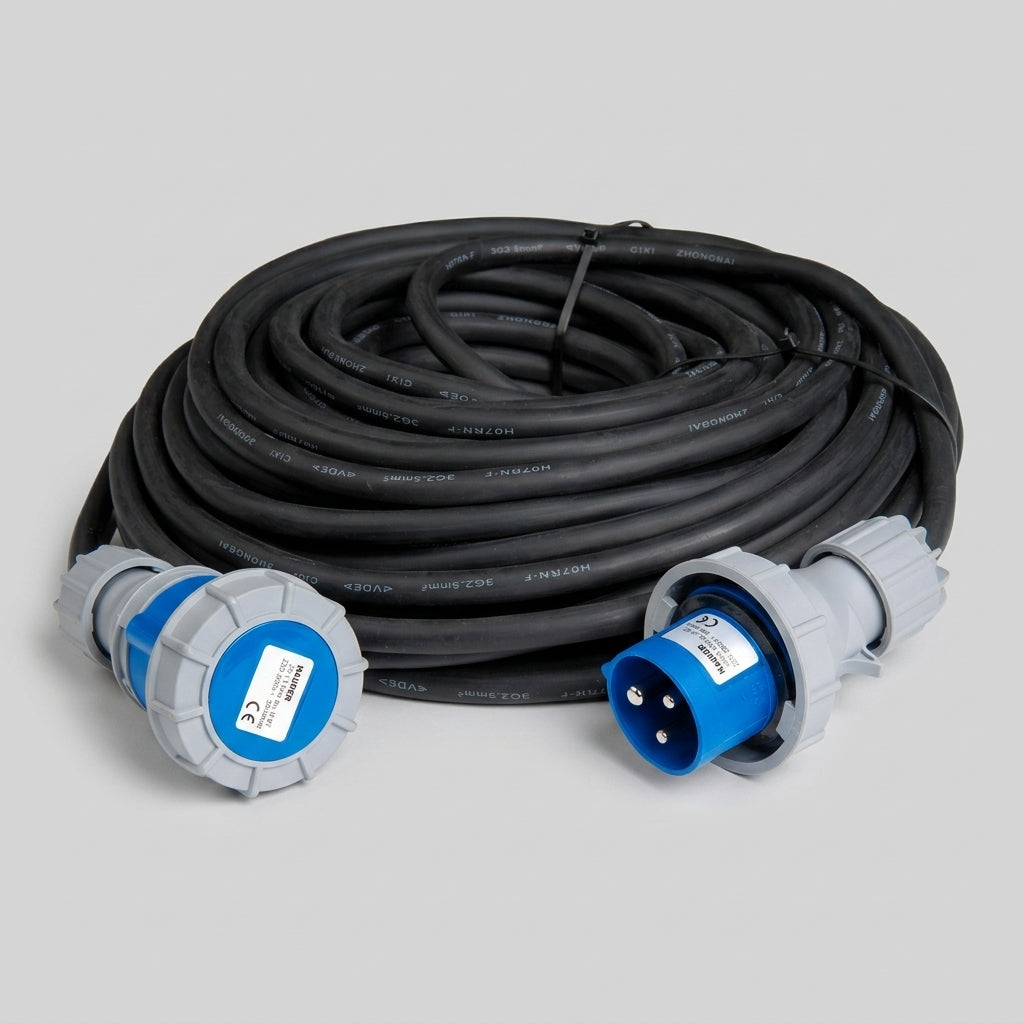

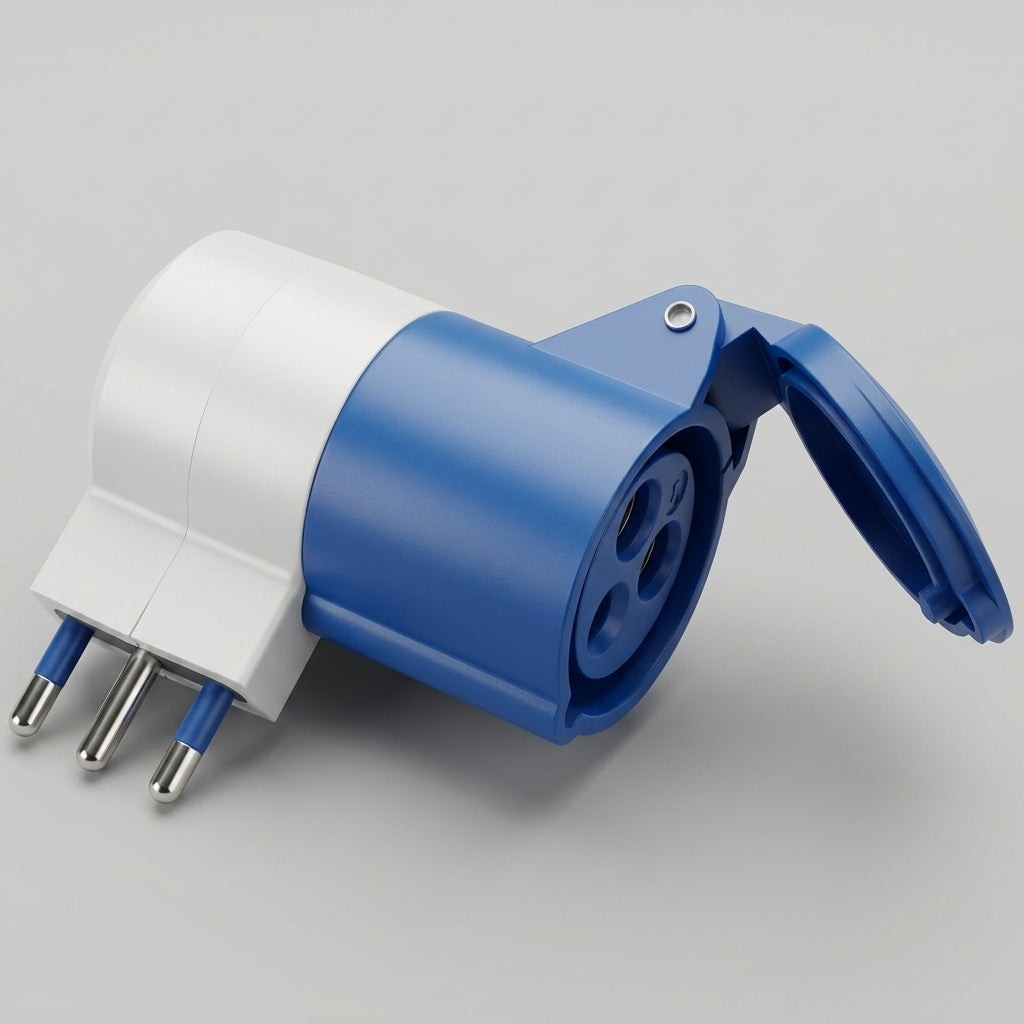

| Power | The box powers the camera — 220 V with industrial plug included (12 V on request) |
| Shooting interval | Programmable, 5 to 20 minutes |
| Installation | Plug & play, no on-site technician |
| Type | Patented industrial device |
| Platform | Images and time lapse videos on the web platform (Base, Monitoring, All Inclusive plans) |
